Name: Rigid Strander Armoured Cable Machine
Brand: Beyde
Price: 1 USD

Brand Name : Beyde

Model Number : Steel Armouring machine

Place of Origin : Hejian,China

MOQ : 1 Set

Payment Terms : L/C, T/T

Supply Ability : 120 Set/Year

Delivery Time : 70-150 Days after receive deposit

Packaging Details : Container loading with safety packing

Price : Negotiate

Color : Customized

Warranty : 12 Months

PLC : optional

Usage : Stranding

Contact Now

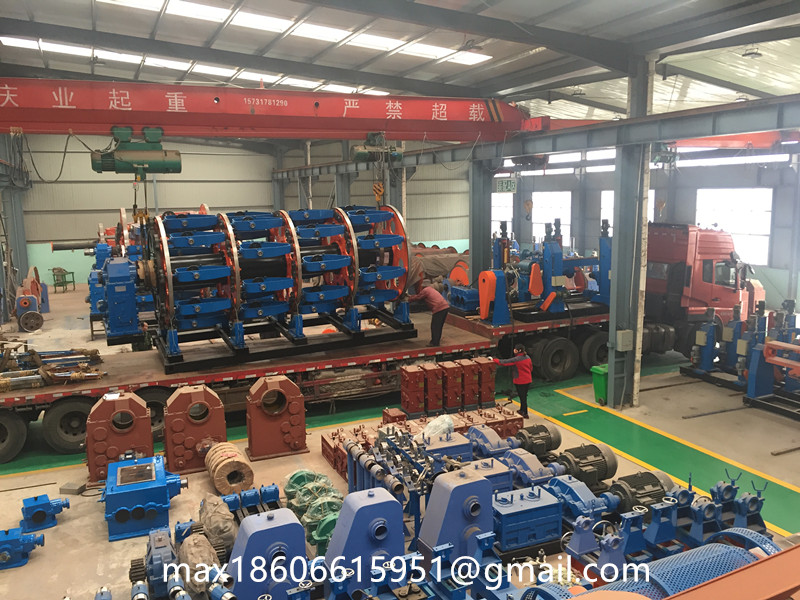

Rigid Type Steel Wire Armouring Machines of Cable Armouring‎ 18 bobbins

Wire Machine Wire Manufacturing Machine Rigid Type Steel Wire Armoring Machine

1. Usage

It is used for steel wire armoring of power cable.

2. Structure

- Bobbin loading by intergral side-bottom loading / manual single loading

- Assemble body structure / Welding body structure

- Bobbin clamping by pneumatic / motorized

- Transmission by separate motor / groud shaft.

3. Main Technical Data

Type		JLK-500 (Ground shaft) (Welding structure)	JLK-630 (Separate motor) (Assemble structure)	JLK-760 (Separate motor) (Assemble structure)
Single conductor dia. (mm)	Cu	1.5~5.0	1.5~5.0	1.5~5.0
	Al	1.8~5.0	1.8~5.0	1.8~5.0
	Al alloy	1.5~5.0	1.5~5.0	1.5~5.0
	Steel	0.9~3.2	0.9~3.2	0.9~3.2
Max. rotating speed (r/min)	6B	190	230	210
	12B	190	210	190
	18B	170	190	170
	24B	150	170	150
	30B	130	150	130
Motor power (KW)	6B	132	90	90
	12B		110	110
	18B		132	132
	24B		132	132
	30B		132	132
Max. working linear speed (m/min)		45	45	45
Pay off bobbin in cage		DIN500	DIN630	DIN760
